Osprey 30

Osprey 30 - A simple roomy liveaboard tug

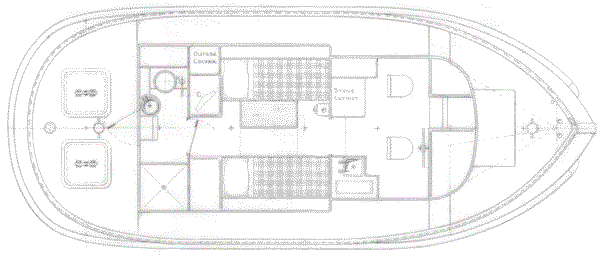

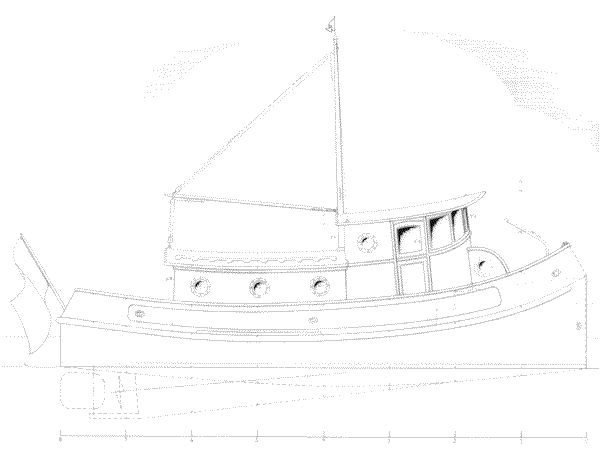

This is a 30' version of our pleasure tug series. She is another very simple vessel at present available to be built in steel or plywood. She is a very roomy boat for her size and has, from forward, a double cabin under the foredeck with double berth to starboard and either a single berth or a bureau to port. The wheelhouse is roomy and has a full galley. The engine and fuel tankage is under the wheelhouse. In the cabin behind the wheelhouse there are berths port and starboard with a table between. There is a small diesel heating stove low down on the forward bulkhead to port of the wheelhouse companionway. Aft of the berths there are two hanging lockers or a hanging locker and bureau.  In the aft cabin there is a head to port which could be arranged with a separate door if desired. To starboard is a good sized shower.  A smaller version of this vessel was originally sketched up for a yacht broker who thought he might like one to chug around to all the boat shows with his files of used boats for sale. Not a bad life I would think. This final version was done for a couple presently residing in Europe to use to explore the East Coast of the United States.  There are three simple unadorned perspectives for your viewing.

Study Plans $66
Complete Building Plans $526
